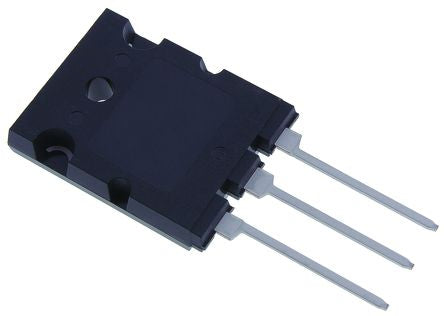

IXTK120N65X2 N-Channel MOSFET, 120 A, 650 V X2-Class, 3-Pin TO-264P IXYS [IXTK120N65X2]; 168-4816
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 120 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | TO-264P |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 23 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 1.25 kW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Series | X2-Class |
| Height | 5.3mm |
| Maximum Operating Temperature | +150 °C |
| Length | 20.3mm |
| Transistor Material | Si |
| Width | 26.3mm |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage | 1.4V |
| Typical Gate Charge @ Vgs | 230 nC @ 10 V |
