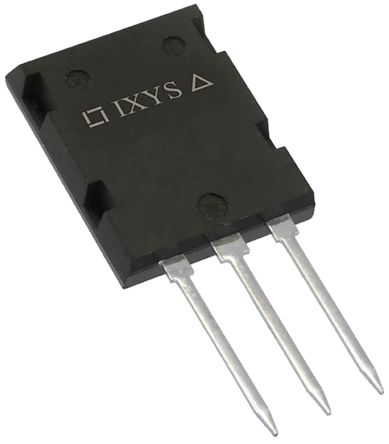

IXTK22N100L N-Channel MOSFET, 22 A, 1000 V Linear, 3-Pin TO-264 IXYS [IXTK22N100L]; 686-7852
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 22 A |
| Maximum Drain Source Voltage | 1000 V |
| Package Type | TO-264 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 600 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Maximum Power Dissipation | 700 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Height | 26.16mm |
| Series | Linear |
| Maximum Operating Temperature | +150 °C |
| Length | 19.96mm |
| Width | 5.13mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 270 nC @ 15 V |
