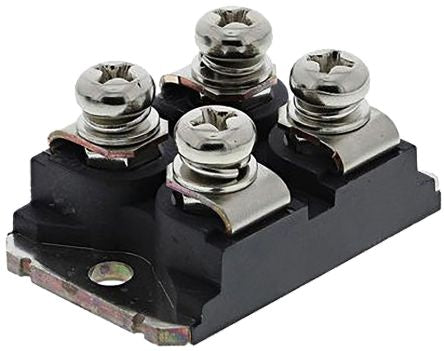

IXTN200N10L2 N-Channel MOSFET, 178 A, 100 V Linear L2, 4-Pin SOT-227 IXYS [IXTN200N10L2]; 168-4584
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 178 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | SOT-227 |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 11 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 830 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 540 nC @ 10 V |
| Length | 38.23mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.4V |
| Minimum Operating Temperature | -55 °C |
| Series | Linear L2 |
| Height | 9.6mm |
| Width | 25.07mm |
