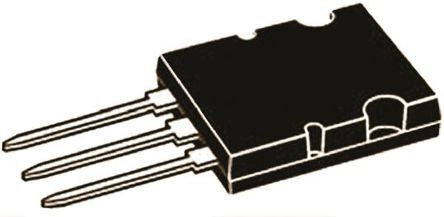

IXYS IXYB82N120C3H1 IGBT, 164 A 1200 V, 3-Pin PLUS264 [IXYB82N120C3H1]; 920-1003
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Continuous Collector Current | 164 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±20V |
| Maximum Power Dissipation | 1.04 kW |
| Package Type | PLUS264 |
| Mounting Type | Through Hole |
| Channel Type | N |
| Pin Count | 3 |
| Switching Speed | 50kHz |
| Transistor Configuration | Single |
| Length | 20.29mm |
| Width | 5.31mm |
| Height | 26.59mm |
| Dimensions | 20.29 x 5.31 x 26.59mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
