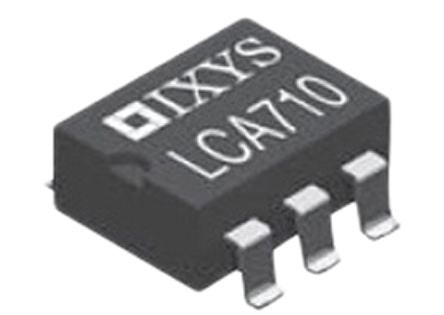

IXYS 1 A rms/A dc, 1.8 A dc SPNO Solid State Relay, AC/DC, Surface Mount, MOSFET [LCA710S]; 906-1130
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 1 A rms/A dc, 1.8 A dc |
| Mounting Type | Surface Mount |
| Switching Type | AC/DC |
| Contact Configuration | SPNO |
| Terminal Type | PCB Pin |
| Output Device | MOSFET |
| Package Style | Small - 6 Pin |
| Maximum Turn On Time | 2.5 ms |
| Dimensions | 8.382 x 6.35 x 3.302mm |
| Height | 3.3mm |
| Length | 8.38mm |
| Off State Leakage Current | 1 μA |
| Operating Temperature Range | -40 → +85°C |
| Depth | 6.35mm |
| Capacitance | 105pF |
| Number of Poles | 1 |
| Relay Type | OptoMOS |
| Special Features | Arc-Free With No Snubbing Circuits, High Reliability, Immune to Radiate FM Interface, No EMI/RFI Generation, Wave Solderable |
| Standards Met | Certificate TUV B 09 07 49140 004, CSA, EN/IEC 60950, UL File E76270 |
