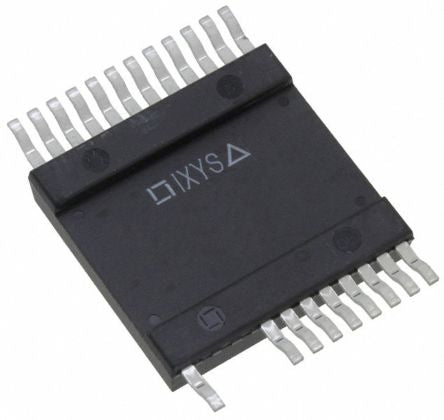

MMIX1F180N25T N-Channel MOSFET, 132 A, 250 V GigaMOS, HiperFET, 24-Pin SMPD IXYS [MMIX1F180N25T]; 146-1770
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 132 A |
| Maximum Drain Source Voltage | 250 V |
| Package Type | SMPD |
| Mounting Type | Surface Mount |
| Pin Count | 24 |
| Maximum Drain Source Resistance | 13 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Maximum Power Dissipation | 570 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Width | 23.25mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 364 nC @ 10 V |
| Height | 5.7mm |
| Series | GigaMOS, HiperFET |
| Maximum Operating Temperature | +150 °C |
| Length | 25.25mm |
| Forward Diode Voltage | 1.3V |
| Transistor Material | Si |
