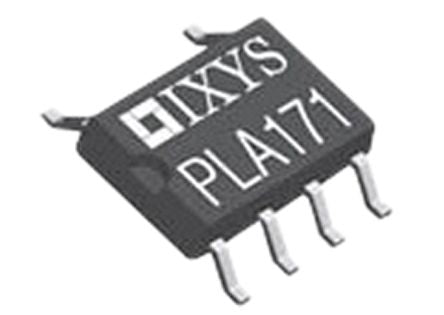

IXYS 100 mA rms/mA dc SPNO Solid State Relay, DC, Surface Mount, MOSFET, 800 V Maximum Load [PLA171P]; 906-1158
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 100 mA rms/mA dc |
| Mounting Type | Surface Mount |
| Maximum Load Voltage | 800 V |
| Switching Type | DC |
| Contact Configuration | SPNO |
| Terminal Type | PCB Pin |
| Output Device | MOSFET |
| Package Style | Flat |
| Maximum Turn On Time | 5 ms |
| Dimensions | 9.652 x 6.35 x 2.159mm |
| Depth | 6.35mm |
| Capacitance | 11pF |
| Load Voltage Range | Maximum of 800V |
| Off State Leakage Current | 1 μA |
| Length | 9.65mm |
| Operating Temperature Range | -40 → +85°C |
| Height | 2.16mm |
| Number of Poles | 1 |
| Standards Met | EN/IEC 60950 TUV B 12 11 82667 001, UL File E76270 |
| Special Features | Arc-Free With No Snubbing Circuits, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable |
| Relay Type | OptoMOS |
