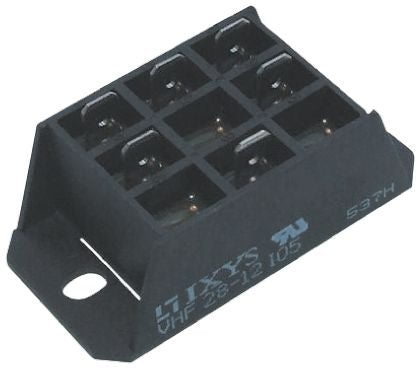

IXYS, VHF28-16IO5, Controllable Bridge Rectifier SCR, 32A 1600V, 6-Pin FO F A [VHF28-16IO5]; 168-4451
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Thyristor Type | SCR Module |
| Maximum Gate Trigger Voltage | 1V |
| Maximum Gate Trigger Current | 65mA |
| Maximum Holding Current | 100mA |
| Rated Average On-State Current | 32A |
| Repetitive Peak Reverse Voltage | 1600V |
| Surge Current Rating | 0.33kA |
| Mounting Type | Panel Mount |
| Package Type | FO F A |
| Pin Count | 6 |
| Peak On-State Voltage | 1.6V |
| Repetitive Peak Forward Blocking Voltage | 1600V |
| Repetitive Peak Off-State Current | 5mA |
| Dimensions | 63 x 31.6 x 21mm |
| Maximum Operating Temperature | +125 °C |
| Width | 31.6mm |
| Height | 21mm |
| Minimum Operating Temperature | -40 °C |
| Length | 63mm |
