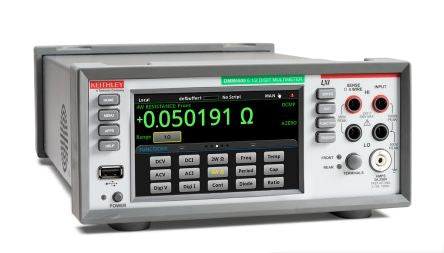

Keithley Bench Digital Multimeter, 10.1A ac 750V ac 10.1A dc 1010V dc [DMM6500]; 173-9960
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Bench |
| Absolute Maximum AC Current Measurement | 10.1A ac |
| Absolute Maximum DC Current Measurement | 10.1A dc |
| Absolute Maximum Resistance Measurement | 120MΩ |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum DC Voltage Measurement | 1010V dc |
| Absolute Maximum Temperature Measurement | +400 °C, +760 °C, +1000 °C, +1300 °C, +1372 °C, +1768 °C, +1820 °C |
| Absolute Maximum Capacitance Measurement | 120µF |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Period, Resistance, Temperature |
| True RMS | Yes |
| Maximum Frequency | 300kHz |
| Display Type | TFT WVGA |
| Model Number p | DMM6500 |
| Resistance Measurement Resolution | 1µΩ |
| Capacitance Measurement Resolution | 0.1pF |
| Temperature Measurement Resolution | 0.001°C |
| Safety Category Level | CAT II |
| Weight | 4.5kg |
| Battery Life | 3 yr |
| Width | 387.4mm |
| Length | 224mm |
| Height | 107.2mm |
| Minimum Operating Temperature | 0°C |
| Safety Category Voltage | 1000V |
| Maximum Operating Temperature | +50°C |
| Dimensions | 224 x 387.4 x 107.2mm |
| Battery Type | Li-Ion |
