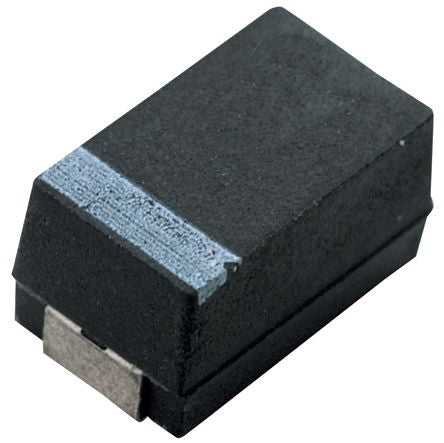

KEMET 120μF 6.3V dc Aluminium Polymer Capacitor, Surface Mount 7.3 x 4.3 x 2.8mm +125°C 7.3mm [A700D127M006ATE015]; 869-1193
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 120 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 7.3 x 4.3 x 2.8mm |
| Height | 2.8mm |
| Length | 7.3mm |
| Depth | 4.3mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Lifetime | 2000h |
| Series | A700 |
| Equivalent Series Resistance | 15 mΩ @ 100 kHz |
| Tolerance | ±20% |
| Dissipation Factor | 6%% |
| Ripple Current | 4.1A |
| Polarised | Polar |
| Leakage Current | 30 μA |
