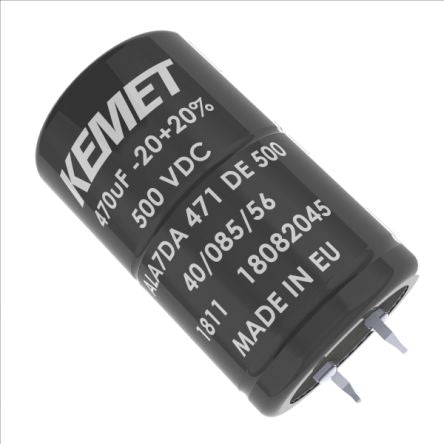

KEMET 470μF 500V dc Aluminium Capacitor, Through Hole 35 Dia. x 45mm +85°C 35mm 10mm [ALA7DA471DE500]; 176-2510
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 470 µF |
| Voltage | 500 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 35 Dia. x 45mm |
| Height | 45mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 35mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 10mm |
| Series | ALA7D |
| Leakage Current | 1.41 mA |
| Automotive Standard | AEC-Q200 |
| Polarised | Polar |
| Equivalent Series Resistance | 403.4 (10 kHz) mΩ, 532.2 (100 Hz) mΩ |
| Ripple Current | 2.47 (100 Hz) A, 4.64 (10 kHz) A |
| Tolerance | ±20% |
