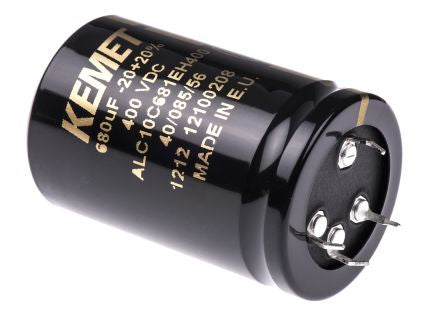

KEMET 680μF 400V dc Aluminium Electrolytic Capacitor 40 x 60mm +85°C 40mm 22.5mm 60mm [ALC10C681EH400]; 339-8215
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 680 µF |
| Voltage | 400 V dc |
| Mounting Type | Snap-In |
| Technology | Electrolytic |
| Dimensions | 40 x 60mm |
| Height | 60mm |
| Length | 60mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 40mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 22.5mm |
| Lifetime | 18000 h @ +85 °C/400V dc/Ir, 29000 h @ +85 °C/400V dc |
| Series | ALC10 |
| Tolerance | ±20% |
| Equivalent Series Resistance | 177 mΩ @ 100 kHz |
| Polarised | Polar |
| Leakage Current | 1.632 mA |
| Ripple Current | 3.99 A @ 100Hz |
