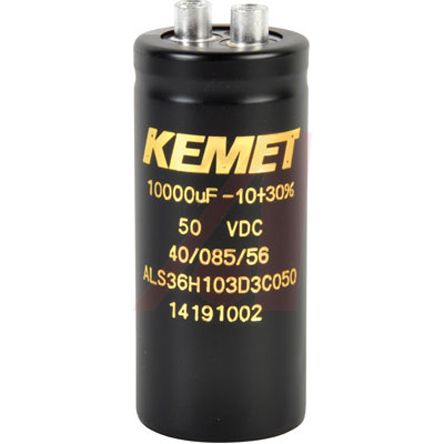

KEMET 10000μF 50V dc Aluminium Electrolytic Capacitor, Chassis Mount 34.93 x 79.38mm +85°C 34.93mm 12.7mm 79.38mm [ALS36H103D3C050]; 869-6325
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10000 µF |
| Voltage | 50 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 34.93 x 79.38mm |
| Height | 79.38mm |
| Length | 79.38mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 34.93mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 12.7mm |
| Lifetime | 11000 h @ +85 °C/50V dc/Ir, 22000 h @ +85 °C/50V dc |
| Series | ALS36 |
| Ripple Current | 11.7 A @ 120 Hz, 15.6 A @ 20 kHz |
| Polarised | Polar |
| Leakage Current | 3 mA |
| Tolerance | -10 → +30% |
| Equivalent Series Resistance | 18 mΩ @ 20 Hz, 24 mΩ @ 120 Hz |
