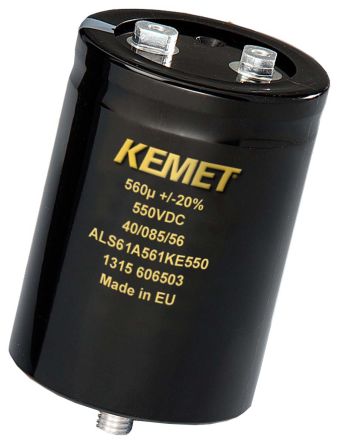

KEMET 560μF 550V dc Aluminium Electrolytic Capacitor, Stud Mount 51 x 82mm +85°C 51mm 22.2mm 82mm [ALS61A561KE550]; 173-1995
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 560 µF |
| Voltage | 550 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 51 x 82mm |
| Height | 82mm |
| Length | 82mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 51mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 18000 h @ +85 °C/550V dc/Ir, 36000 h @ +85 °C/550V dc |
| Lead Pitch | 22.2mm |
| Series | ALS60 |
| Ripple Current | 4.6 A @100 Hz, 7.4 A @10 kHz |
| Equivalent Series Resistance | 536mΩ |
| Polarised | Polar |
| Tolerance | ±20% |
| Leakage Current | 1.848 mA |
