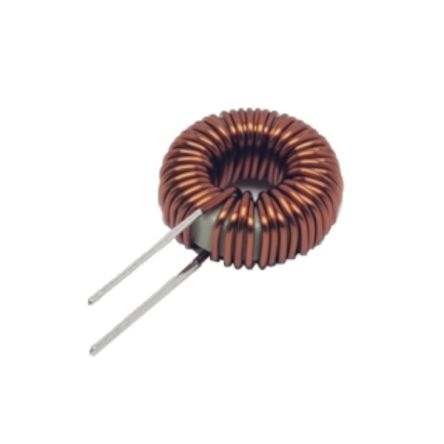

KEMET Inductor: wire; THT; 45uH; 6A; R: 18.3mΩ; -40÷125°C [PHBC13-1R2A0045V]
The KEMET PHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Ni dust cores and are useful in various fields such as DC/DC converters as well as normal noise countermeasures. Fe-Ni dust core material Most suitable for big current Applications Low core loss High saturation magnetic flux density Good DC superposition characteristics Wide variety of sizes and specifications Operating temperature range from −40°C to +125°C Applications Switching power supply outlet DC-DC converter Phase compensation Boost converter Normal mode noise solution countermeasure
The KEMET PHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Ni dust cores and are useful in various fields such as DC/DC converters as well as normal noise countermeasures.
Fe-Ni dust core material
Most suitable for big current Applications
Low core loss
High saturation magnetic flux density
Good DC superposition characteristics
Wide variety of sizes and specifications
Operating temperature range from −40°C to +125°C
Applications
Switching power supply outlet
DC-DC converter
Phase compensation
Boost converter
Normal mode noise solution countermeasure
