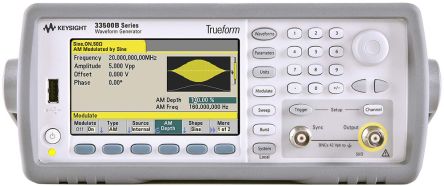

Keysight Technologies 33519B Function Generator 30MHz Ethernet, GPIB, LAN, USB [33519B]; 763-9138
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency Range Sinewave | 30MHz |
| Minimum Frequency Range Sinewave | 1µHz |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 30MHz |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz |
| Maximum Frequency Range Triangle/Saw | 20kHz |
| Minimum Frequency Range Triangle/Saw | 1µHz |
| Digital Frequency | Yes |
| Digital Amplitude and Offset | Yes |
| Internal Linear and Log Sweep | Yes |
| Variable Sweep | Yes |
| Internal and External Amplitude Modulation | Yes |
| FM Modulation | Yes |
| Time Base Accuracy | ±0.1ppm |
| Width | 212.8mm |
| Height | 88.3mm |
| Length | 272.3mm |
| Output Impedance | 50Ω |
| Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz → 30 MHz |
| Interface Type | Ethernet, GPIB, LAN, USB |
| Minimum Operating Temperature | 0°C |
| Dimensions | 272.3 x 212.8 x 88.3mm |
| Model Number p | 33519B |
| Input Impedance | 5 kΩ |
| Maximum Operating Temperature | +55°C |
| Output Amplitude | 20V Pk-Pk |
| Weight | 3.3kg |
