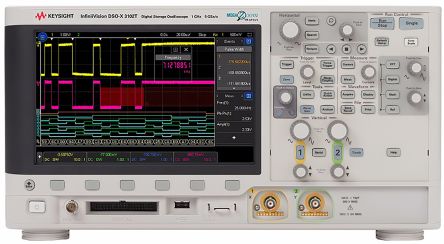

Keysight Technologies, DSOX3102T Mixed Signal Oscilloscope, 1GHz [DSOX3102T]; 134-6143
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | InfiniiVision |
| Bandwidth | 1GHz |
| Record Length | 2M points/ch |
| Sample Rate Random | 2.5 (All Analogue) G samples/s, 5 (All Half Analogue) G samples/s |
| UART Interface | Yes |
| USB Interface | Yes |
| Vertical Resolution | 8 bit, 12 bit |
| Minimum Time Base | 500ps/div |
| Maximum Time Base | 50s/div |
| Minimum Vertical Sensitivity | 1mV/div |
| Maximum Vertical Sensitivity | 5V/div |
| Screen Size | 8.5in |
| Length | 381mm |
| Width | 204mm |
| Power Source | Mains |
| RS232 Interface | Yes |
| Dimensions | 381 x 204 x 142mm |
| Safety Category Voltage | ±40V |
| SPI Interface | Yes |
| Safety Category | CAT I ±40 V |
| Rise Time | ≤450ps |
| Display Type | TFT LCD |
| Maximum Operating Temperature | +55°C |
| Lin Interface | Yes |
| RS485 Interface | Yes |
| Safety Category Level | CAT I |
| Weight | 4kg |
| Model Number p | 3000T X-Series |
| Height | 142mm |
| Minimum Operating Temperature | 0°C |
| RS422 Interface | Yes |
| CAN Interface | Yes |
| IIC Interface | Yes |
