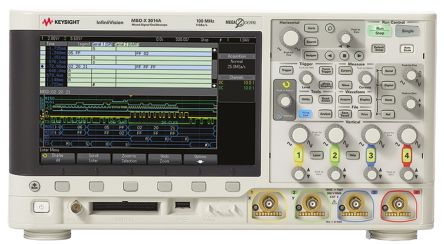

Keysight Technologies, MSOX3014A Mixed Signal Oscilloscope, 4 Analogue. Ch., 16 Digital. Ch., 100MHz [MSOX3014A]; 725-0423
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | InfiniiVision 3000 X |
| Bandwidth | 100MHz |
| Number of Analogue Channels | 4 |
| Number of Digital Channels | 16 |
| Record Length | 2M points/ch |
| Sample Rate Random | 4 G samples/s |
| USB Interface | Yes |
| Vertical Resolution | 8 bit |
| Minimum Time Base | 5ns/div |
| Maximum Time Base | 50s/div |
| Minimum Vertical Sensitivity | 1mV/div |
| Maximum Vertical Sensitivity | 5V/div |
| Screen Size | 8.5in |
| Width | 141.5mm |
| Length | 380.6mm |
| Power Source | Mains |
| Safety Category | CAT I 300 V, CAT II 300 V |
| Rise Time | 3.5ns |
| Display Type | Colour |
| Maximum Operating Temperature | +55°C |
| Safety Category Voltage | 300V |
| Input Capacitance | 14 pF |
| Dimensions | 380.6 x 141.5 x 204.4mm |
| Minimum Operating Temperature | 0°C |
| Height | 204.4mm |
| Input Impedance | 1 MΩ |
| Model Number p | MSOX3014A |
| Weight | 3.9kg |
| Safety Category Level | CAT I, CAT II |
