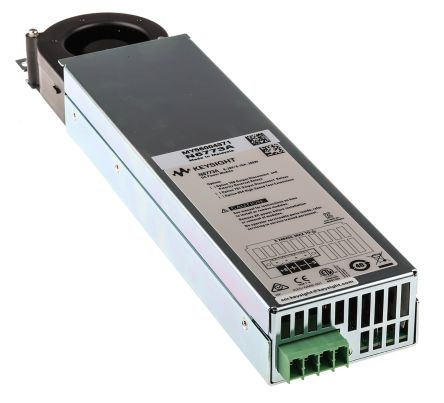

Keysight Technologies N6700 Series Digital Bench Power Supply, 0 → 20V, 15A, 1-Output, 300W [N6773A]; 690-9704

Keysight Technologies DC Power Module

The Keysight technologies 300W 1-channel programmable DC power supply has an output voltage rating of 20V and an output current rating of 15A. It provides excellent performance at a great price. The power supply is the rack mount. This power module is suitable to power the DUT or to provide power for ATE system resources such as fixture control.

Features and Benefits

Fully compliant to LXI Class C specification

Output voltage can be changed in as few as 200 microseconds

Hardware and software triggering enables synchronization to other events in ATE system

Transients captured with built-in digitizer (up to 50kHz, 4096 points)

Generates automated sequencing of up to 512 output settings

Ensures DUT safety with protection features

Screw terminal

Applications

Industrial

Medical equipment

Electronic equipment

Certifications

EMC

IEC 825-1

EN 27779

Note

Manufacturer's Warranty
