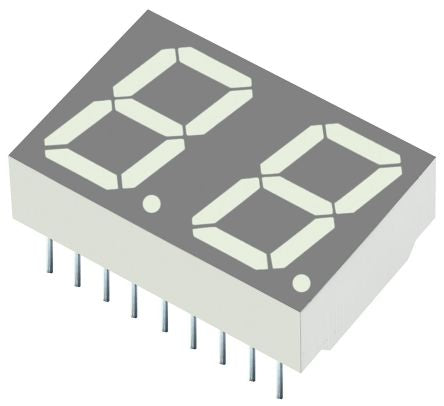

DC56-51CGKWA Kingbright 2 Digit 7-Segment LED Display, CC Green 23 mcd RH DP 14.2mm [DC56-51CGKWA]; 877-0930
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 2 |
| LED Colours | Green |
| Number of Segments | 7 |
| Dominant Wavelength | 570 nm |
| Character Width | 7.8mm |
| Character Height | 14.2mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Width | 25mm |
| External Dimensions | 25 x 17.02 x 8mm |
| External Height | 8mm |
| External Depth | 17mm |
| Luminous Intensity | 23 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Operating Temperature Range | -40 → +85°C |
| Decimal Orientation | Right Side |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Forward Current | 30mA |
| Series | DC56 |
| Forward Voltage | 2.1 V |
