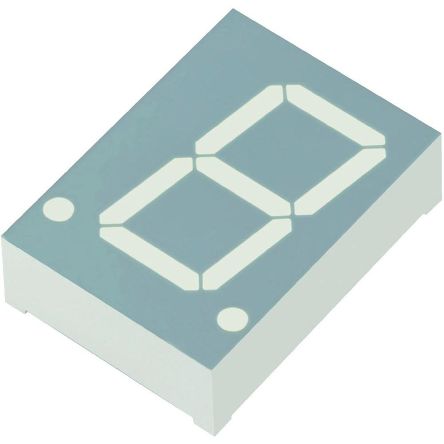

SA08-11CGKWA Kingbright 7-Segment LED Display, CA Green 25 mcd RH DP 20.3mm [SA08-11CGKWA]; 863-4926
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Green |
| Number of Segments | 7 |
| Dominant Wavelength | 570 nm |
| Character Width | 11mm |
| Character Height | 20.3mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Height | 27.7mm |
| External Width | 20mm |
| External Dimensions | 20 x 27.7 x 8.4mm |
| External Depth | 8.4mm |
| Luminous Intensity | 25 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Decimal Orientation | Right Side |
| Forward Current | 30mA |
| Forward Voltage | 2.1 V |
| Minimum Operating Temperature | -40°C |
