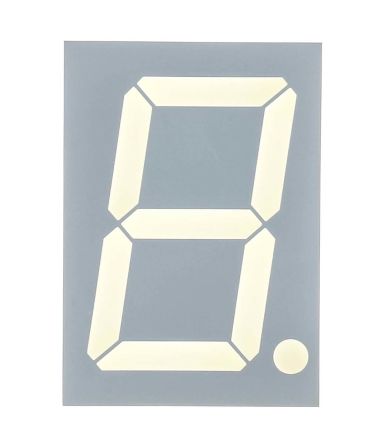

SA15-11SRWA Kingbright 7-Segment LED Display, CA Red 60 mcd RH DP 38mm [SA15-11SRWA]; 235-9045
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 640 nm |
| Character Width | 22mm |
| Character Height | 38mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Width | 33.2mm |
| External Height | 47mm |
| External Dimensions | 47 x 33.15 x 12.5mm |
| External Depth | 12.5mm |
| Luminous Intensity | 60 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75 mW, 150 mW |
| Forward Voltage | 1.85 V, 3.7 V |
| Maximum Operating Temperature | +85°C |
| Decimal Orientation | Right Side |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Forward Current | 30mA |
