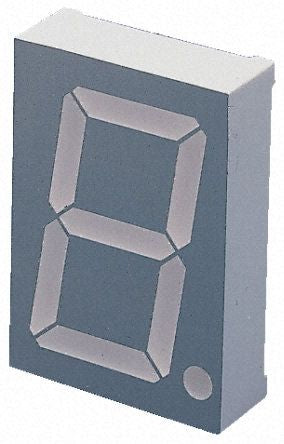

SA23-11SURKWA Kingbright 7-Segment LED Display, CA Red 440 mcd RH DP 57mm [SA23-11SURKWA]; 872-2032
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 630 nm |
| Character Width | 32.2mm |
| Character Height | 57mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Depth | 70mm |
| External Height | 12mm |
| External Dimensions | 48 x 70 x 12mm |
| External Width | 48mm |
| Luminous Intensity | 440 mcd |
| Colour of Face | Grey |
| Power Dissipation | 150 mW, 300 mW |
| Minimum Operating Temperature | -40°C |
| Forward Voltage | 3.9 V, 7.8 V |
| Series | SA23 |
| Forward Current | 30mA |
| Operating Temperature Range | -40 → +85°C |
| Decimal Orientation | Right Side |
| Maximum Operating Temperature | +85°C |
