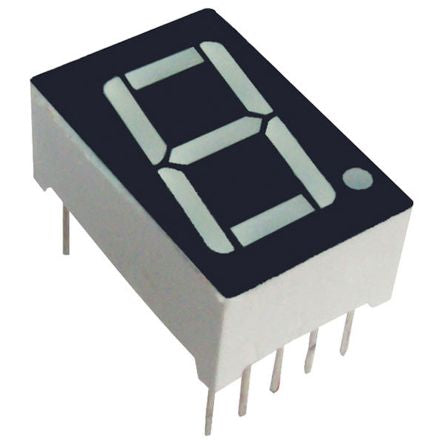

SC08-12SYKWA Kingbright 7-Segment LED Display, CC Yellow 140 mcd LH DP 20.3mm [SC08-12SYKWA]; 877-1533
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Yellow |
| Number of Segments | 7 |
| Dominant Wavelength | 590 nm |
| Character Width | 11mm |
| Character Height | 20.3mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Height | 8.4mm |
| External Width | 27.7mm |
| External Dimensions | 27.7 x 20 x 8.4mm |
| External Depth | 20mm |
| Luminous Intensity | 140 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Forward Voltage | 2 V |
| Minimum Operating Temperature | -40°C |
| Series | SC08 |
| Maximum Operating Temperature | +85°C |
| Decimal Orientation | Left Side |
| Operating Temperature Range | -40 → +85°C |
| Forward Current | 30mA |
