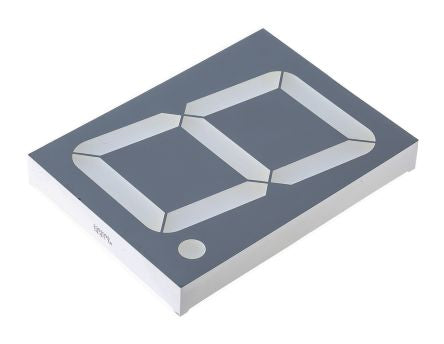

SC40-19SRWA Kingbright 7-Segment LED Display, CC Red 105 mcd RH DP 101mm [SC40-19SRWA]; 235-9398
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 640 nm |
| Character Width | 59.5mm |
| Character Height | 101mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Depth | 15mm |
| External Dimensions | 122 x 90 x 15mm |
| External Width | 90mm |
| External Height | 122mm |
| Luminous Intensity | 105 mcd |
| Colour of Face | Grey |
| Power Dissipation | 150 mW, 600 mW |
| Minimum Operating Temperature | -40°C |
| Forward Current | 30 mA, 60 mA |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Decimal Orientation | Right Side |
| Forward Voltage | 3.7 V, 7.4 V |
