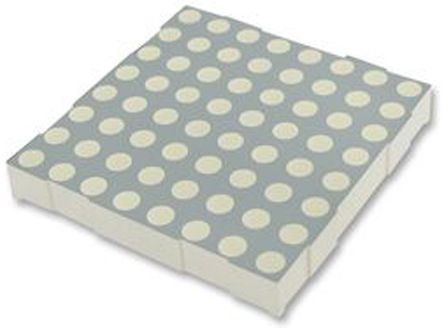

TBA23-12SURKCGKWA Kingbright Dot Matrix LED Display, CA 8 x 8 Dot Matrix Green, Red 51000 ucd, 110000 ucd 58mm [TBA23-12SURKCGKWA]; 165-4373
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Dot Matrix |
| LED Colours | Green, Red |
| Dominant Wavelength | 570 / 630 nm |
| Character Width | 58mm |
| Character Height | 58mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Depth | 9.2mm |
| External Height | 60.8mm |
| External Dimensions | 60.8 x 60.8 x 9.2mm |
| External Width | 60.8mm |
| Luminous Intensity | 51000 ucd, 110000 ucd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Minimum Operating Temperature | -40°C |
| Forward Voltage | 2.1 V |
| Dots High | 8 |
| Dot Matrix Dimensions | 8 x 8 |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Dot Matrix Format | 8 x 8 |
| Forward Current | 30mA |
| Series | TBA23 |
| Dots Wide | 8 |
