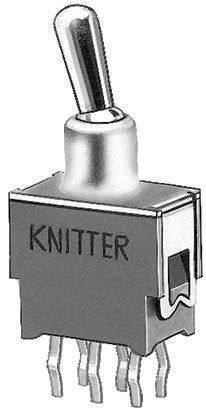

KNITTER-SWITCH Double Pole Double Throw (DPDT) Toggle Switch, Latching, PCB [ATE2D]; 702-3426
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | Latching |
| Contact Current Rating | 50 mA @ 48 V dc |
| Mounting Type | PCB |
| Terminal Type | Through Hole |
| Actuator Length | 6mm |
| Contact Resistance | 50mΩ |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 +80°C |
| Contact Material | Gold Over Nickel Plated Phosphor Bronze |
| Mechanical Life | 60000Operations |
| Maximum Operating Temperature | +80°C |
