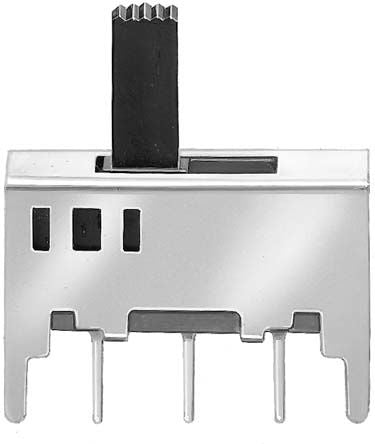

PCB Slide Switch Double Pole Single Throw (DPST) Latching 350 mA @ 30 V dc Slide [MFP 211 N]; 913-9028
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Single Throw (DPST) |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 350 mA @ 30 V dc |
| Terminal Type | Pc Pin |
| Actuator Type | Slide |
| Length | 16mm |
| Width | 6.5mm |
| Depth | 15mm |
| Dimensions | 16 x 6.5 x 15mm |
| Contact Resistance | 20mΩ |
| Mechanical Life | 10000Operations |
| Operating Temperature Range | -20 → +85°C |
| Actuator Material | Polyoxymethylene |
| Contact Material | Copper Alloy |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
| Voltage Rating | 30V dc |
