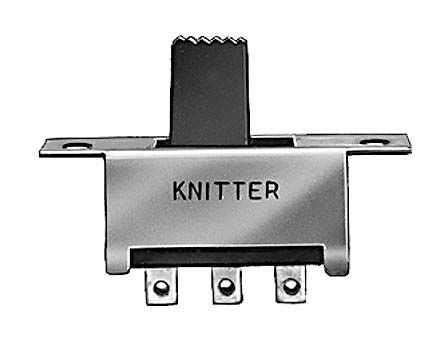

Panel Mount Slide Switch Single Pole Single Throw (SPST) Latching 350 mA @ 30 V dc Slide [MFS 131 D]; 913-9043
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Mounting Type | Panel Mount |
| Switch Operation | Latching |
| Contact Current Rating | 350 mA @ 30 V dc |
| Terminal Type | Lug |
| Actuator Type | Slide |
| Length | 23mm |
| Width | 7.3mm |
| Depth | 14.2mm |
| Dimensions | 23 x 7.3 x 14.2mm |
| Contact Resistance | 20mΩ |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -20 → +85°C |
| Voltage Rating | 30V dc |
| Minimum Operating Temperature | -20°C |
| Contact Material | Copper Alloy |
