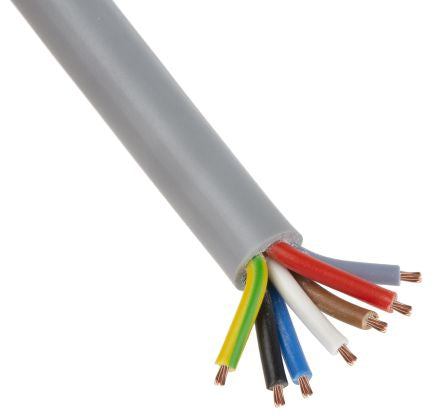

Lapp Lapp Olflex Classic 100 300/500V 7 Core YY Control Cable, 0.5 mm², 50m, Unscreened [0010005]; 727-1379
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 7 |
| Cross Sectional Area | 0.5 mm² |
| Series | ÖLFLEX CLASSIC 100 |
| Screened/Unscreened | Unscreened |
| Earth Cable | Yes |
| Sheath Colour | Grey |
| Outer Diameter | 6.7mm |
| Current Rating | 0.375 |
| Voltage Rating | 300/500 V |
| American Wire Gauge | 20 AWG |
| Conductor Material | Copper |
| Core Strands | 16/0.20 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Maximum Operating Temperature | +70°C |
| Minimum Bend Radius | Fixed - 4 x D Occasional flexing - 15 x D |
| Oil Resistant | Yes |
| Length | 50m |
| Filler Material | Non-Wicking Filler |
| Minimum Operating Temperature | -5°C |
| Insulation Material | PVC |
| Conductor Resistance | 39 Ω/km |
