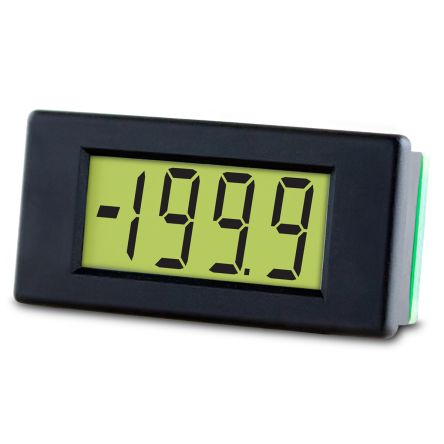

LASCAR Voltmeter; digital,mounting; VDC: 0÷200mV; on panel; LCD; 350uA; DPM2AS-BL [DPM 2AS-BL]
Lascar Digital Voltmeter The Lascar digital voltmeter features a negative rail generator that enables the meter to measure a signal referenced to its power GND. It has an LED backlighting for excellent readability under low light conditions. The design of the panel meter's housing allows the module to be easily snapped into a panel. The module's low cost makes it suitable for high as well as low volume applications. Its full-scale reading is 200mVDC and supply voltage ranging between 3.0 to 7.5V or 6.0 to 15.0V. Features and Benefits Digit height is 8.25mm (0.22in) Auto-zero and auto-polarity Programmable decimal points LED backlight Number of digits are 3.5 Operating temperature ranging between 0°C and 50°C Applications Precision instrumentation systems Power supply monitoring Hand held instruments Panel-mount indication Low power voltage measurement Certifications ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
Lascar Digital Voltmeter
The Lascar digital voltmeter features a negative rail generator that enables the meter to measure a signal referenced to its power GND. It has an LED backlighting for excellent readability under low light conditions. The design of the panel meter's housing allows the module to be easily snapped into a panel. The module's low cost makes it suitable for high as well as low volume applications. Its full-scale reading is 200mVDC and supply voltage ranging between 3.0 to 7.5V or 6.0 to 15.0V.
Features and Benefits
Digit height is 8.25mm (0.22in)
Auto-zero and auto-polarity
Programmable decimal points
LED backlight
Number of digits are 3.5
Operating temperature ranging between 0°C and 50°C
Applications
Precision instrumentation systems
Power supply monitoring
Hand held instruments
Panel-mount indication
Low power voltage measurement
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
