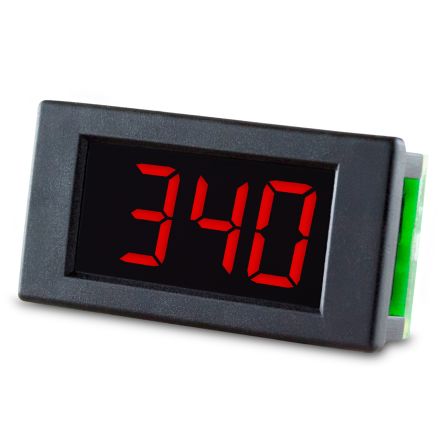

LASCAR Voltmeter; digital,mounting; 0÷200mV; on panel; snap fastener; DPM340 [DPM 340]
Lascar Digital Voltmeter The Lascar digital voltmeter is a compact, low-cost LED module, ideally suited for applications that require a bright display under all conditions. The device is fitted with high-efficiency, very low current LEDs and housed in a carrier with the integral snap-in bezel. The small size and low cost of the unit make it suitable for a high volume OEM applications. Its full-scale reading is 200mVDC and supply voltage ranging between 4.75VDC and 5.25VDC. Features and Benefits Digit height is 8mm (0.31in) Programmable decimal points Auto-zero Auto-polarity Full scale reading (F. S. R.) is 200mVDC Very low current consumption Number of digits are 3.5 Operating temperature ranging between 0°C and 50°C Certifications ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
Lascar Digital Voltmeter
The Lascar digital voltmeter is a compact, low-cost LED module, ideally suited for applications that require a bright display under all conditions. The device is fitted with high-efficiency, very low current LEDs and housed in a carrier with the integral snap-in bezel. The small size and low cost of the unit make it suitable for a high volume OEM applications. Its full-scale reading is 200mVDC and supply voltage ranging between 4.75VDC and 5.25VDC.
Features and Benefits
Digit height is 8mm (0.31in)
Programmable decimal points
Auto-zero
Auto-polarity
Full scale reading (F. S. R.) is 200mVDC
Very low current consumption
Number of digits are 3.5
Operating temperature ranging between 0°C and 50°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
