LASCAR Voltmeter; digital,mounting; 0÷200mV; on panel; LED; 3,5 digit; DPM40 [DPM 40]
Lascar Digital Voltmeter The Lascar digital voltmeter is a compact instrument, ideally suited for applications that require excellent readability under all lighting conditions. The meter is fitted with high-efficiency LEDs that, together with the integral red filter, provide a high contrast display. The user can easily scale the meter to indicate volts, amps, or other engineering units and may be used in single-ended, differential, or floating input modules. Its full-scale reading is 200mVDC and voltage supply ranging between 4.5V to 5.5V. Features and Benefits Digit height is 11mm (0.43in) Auto-zero Auto-polarity Programmable decimal points Number of digits are 3.5 Operating temperature ranging between 0°C and 50°C Certifications ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007

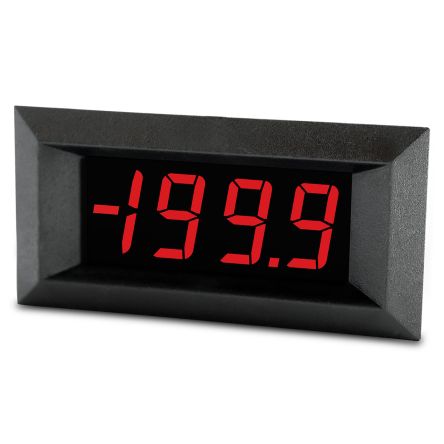

Lascar Digital Voltmeter
The Lascar digital voltmeter is a compact instrument, ideally suited for applications that require excellent readability under all lighting conditions. The meter is fitted with high-efficiency LEDs that, together with the integral red filter, provide a high contrast display. The user can easily scale the meter to indicate volts, amps, or other engineering units and may be used in single-ended, differential, or floating input modules. Its full-scale reading is 200mVDC and voltage supply ranging between 4.5V to 5.5V.
Features and Benefits
Digit height is 11mm (0.43in)
Auto-zero
Auto-polarity
Programmable decimal points
Number of digits are 3.5
Operating temperature ranging between 0°C and 50°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
