LASCAR Voltmeter; digital,mounting; 0÷200mV; on panel; snap fastener; DPM400 [DPM 400]
3 Digit LCD Voltmeter The DPM 400 features a 3 digit LCD with 10mm digit height annunciators and a low-profile bezel for mounting. The meter has a 28 pin DIL integrated circuit format and can be plugged directly into a DIL socket or can be panel mounted using the snap in bezel provided. The bezel incorporates a flat reverse printed window, giving a superb appearance that cannot be damaged or removed by contact. This unique compact LCD meter is ideally suited to low or high volume applications. Features and Benefits 10mm Digit Height Programmable Decimal Points Auto-Zero Auto-Polarity 200mV d.c. Full Scale Reading Annunciators LCD 10 to 15mm Digit Height, Optional Symbols All these digital voltmeters have an operating temperature of 0 to + 50°C and feature selectable decimal points, auto polarity and auto zero. They can be converted to ammeters using a 200mV digital current shunt.

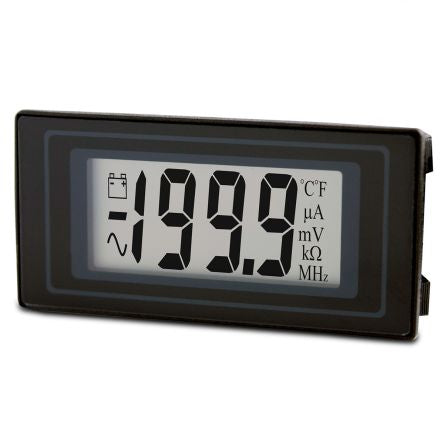

3 Digit LCD Voltmeter
The DPM 400 features a 3 digit LCD with 10mm digit height annunciators and a low-profile bezel for mounting. The meter has a 28 pin DIL integrated circuit format and can be plugged directly into a DIL socket or can be panel mounted using the snap in bezel provided.
The bezel incorporates a flat reverse printed window, giving a superb appearance that cannot be damaged or removed by contact. This unique compact LCD meter is ideally suited to low or high volume applications.
Features and Benefits
10mm Digit Height
Programmable Decimal Points
Auto-Zero
Auto-Polarity
200mV d.c. Full Scale Reading
Annunciators
LCD 10 to 15mm Digit Height, Optional Symbols
All these digital voltmeters have an operating temperature of 0 to + 50°C and feature selectable decimal points, auto polarity and auto zero. They can be converted to ammeters using a 200mV digital current shunt.
