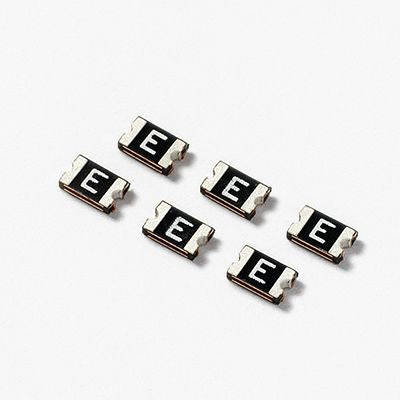

Littelfuse 1.1A Resettable Surface Mount Fuse, 6V dc [0805L110SLYR]; 174-0356
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 1.8A |
| Voltage Rating | 6 V dc |
| Time to Trip | 0.3s |
| Hold Current | 1.1 A |
| Maximum Current | 50 A |
| Length | 2.2mm |
| Height | 0.75mm |
| Width | 1.5mm |
| Terminal Material | Tin Plated Copper |
| Minimum Resistance | 0.03Ω |
| Maximum Resistance | 130mΩ |
| Power Dissipation | 0.6W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Body Material | Polymer |
| Series | 0805L |
| Dimensions | 2.2 x 1.5 x 0.75mm |
| Fuse Speed | F |
| Operating Temperature Range | -40 → +85 °C |
