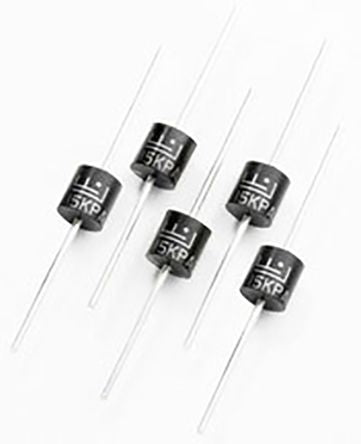

Littelfuse 15KPA48A, Uni-Directional TVS Diode, 15000W, 2-Pin P600 [15KPA48A]; 171-9463
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 77.7V |
| Minimum Breakdown Voltage | 53.6V |
| Mounting Type | Through Hole |
| Package Type | P600 |
| Maximum Reverse Stand-off Voltage | 48V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 15000W |
| Maximum Peak Pulse Current | 194.3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Dimensions | 9.1 Dia. x 9.1mm |
| Maximum Reverse Leakage Current | 2µA |
| Surge Current Rating | 400A |
| Length | 9.1mm |
| Diameter | 9.1mm |
| Test Current | 5mA |
