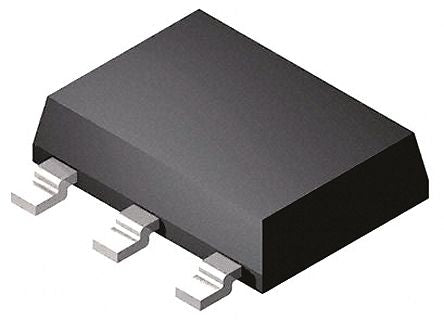

MAC08BT1G 0.8A, 200V, TRIAC, Gate Trigger 2V 10mA, 3+Tab-pin, Surface Mount, SOT-223 Littelfuse [MAC08BT1G]; 805-1592
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 0.8A |
| Mounting Type | Surface Mount |
| Package Type | SOT-223 |
| Maximum Gate Trigger Current | 10mA |
| Repetitive Peak Reverse Voltage | 200V |
| Surge Current Rating | 8A |
| Pin Count | 3+Tab |
| Maximum Gate Trigger Voltage | 2V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 5mA |
| Dimensions | 6.7 x 3.7 x 1.65mm |
| Length | 6.7mm |
| Width | 3.7mm |
| Height | 1.65mm |
| Maximum Operating Temperature | +110 °C |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 1.9V |
| Repetitive Peak Off-State Current | 200µA |
