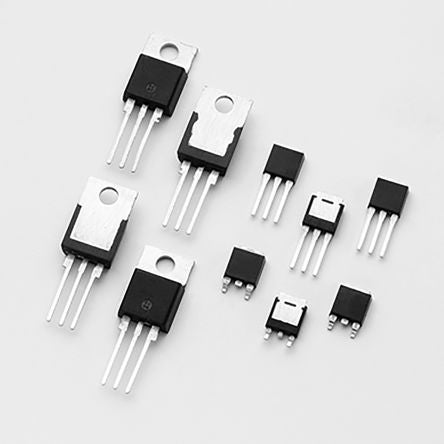

Q4004L3TP 4A, 400V, TRIAC, Gate Trigger 1.3V 10mA, 3-pin, Through Hole, TO-220AB Littelfuse [Q4004L3TP]; 171-9494
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 4A |
| Mounting Type | Through Hole |
| Package Type | TO-220AB |
| Maximum Gate Trigger Current | 10mA |
| Repetitive Peak Reverse Voltage | 400V |
| Surge Current Rating | 55A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.3V |
| Maximum Holding Current | 20mA |
| Dimensions | 10.67 x 4.78 x 15.75mm |
| Length | 10.67mm |
| Width | 4.78mm |
| Height | 15.75mm |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 1.6V |
| Repetitive Peak Off-State Current | 10µA |
| Maximum Operating Temperature | +125 °C |
