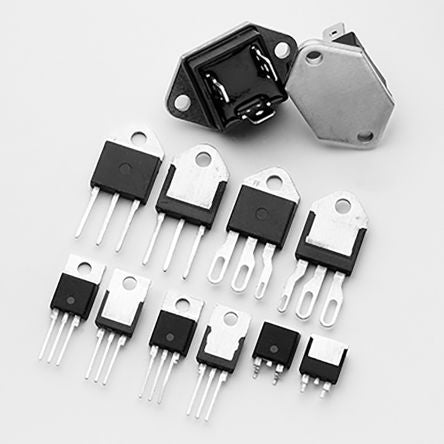

Q4025L6TP 25A, 400V, TRIAC, Gate Trigger 2.5V 80mA, 3-pin, Through Hole, TO-220AB Littelfuse [Q4025L6TP]; 171-9495
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 25A |
| Mounting Type | Through Hole |
| Package Type | TO-220AB |
| Maximum Gate Trigger Current | 80mA |
| Repetitive Peak Reverse Voltage | 400V |
| Surge Current Rating | 250A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 2.5V |
| Maximum Holding Current | 50mA |
| Dimensions | 10.67 x 4.78 x 15.75mm |
| Length | 10.67mm |
| Width | 4.78mm |
| Height | 15.75mm |
| Maximum Operating Temperature | +125 °C |
| Peak On-State Voltage | 1.4V |
| Minimum Operating Temperature | -25 °C |
| Repetitive Peak Off-State Current | 5000µA |
