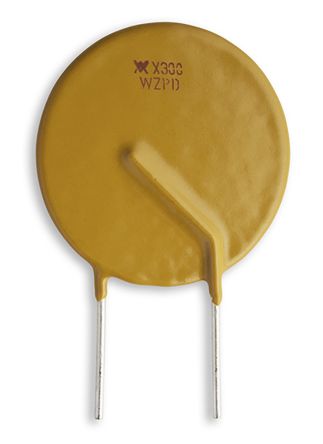

Littelfuse 3A Hold current, Radial Resettable Wire Ended Fuses, 72 V ac, 72 V dc [RF2650-000]; 174-0865
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 6A |
| Time to Trip | 19.8s |
| Hold Current | 0.125 |
| Voltage Rating | 72 V ac, 72 V dc |
| Maximum Current | 40 A |
| Minimum Resistance | 0.04Ω |
| Maximum Resistance | 100mΩ |
| Power Dissipation | 2.8W |
| Body Height | 28.6mm |
| Body Length | 23.9mm |
| Body Width | 3mm |
| Wire Pitch | 10.9mm |
| Wire Length | 7.6mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
