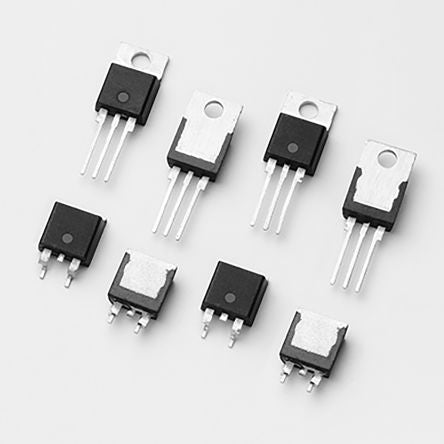

Littelfuse, S6025LTP, Thyristor 25A, 35mA 3-Pin, TO-220AB [S6025LTP]; 171-9508
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 25A |
| Thyristor Type | SCR |
| Package Type | TO-220AB |
| Surge Current Rating | 300A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 35mA |
| Maximum Gate Trigger Voltage | 1.5V |
| Maximum Holding Current | 50mA |
| Pin Count | 3 |
| Length | 10.67mm |
| Width | 4.78mm |
| Height | 15.75mm |
| Dimensions | 10.67 x 4.78 x 15.75mm |
| Maximum Operating Temperature | +125 °C |
| Peak On-State Voltage | 1.6V |
| Repetitive Peak Off-State Current | 1000µA |
| Off-State Voltage | 600V |
| Minimum Operating Temperature | -40 °C |
