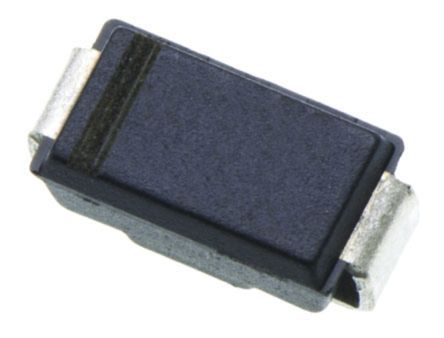

Littelfuse SMAJ10A, Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC [SMAJ10A]; 171-9528
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 17V |
| Minimum Breakdown Voltage | 12.3V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AC |
| Maximum Reverse Stand-off Voltage | 10V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 23.5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 4.6mm |
| Height | 2.08mm |
| Width | 2.79mm |
| Dimensions | 4.6 x 2.79 x 2.08mm |
| Surge Current Rating | 60A |
| Maximum Reverse Leakage Current | 5µA |
| Test Current | 1mA |
