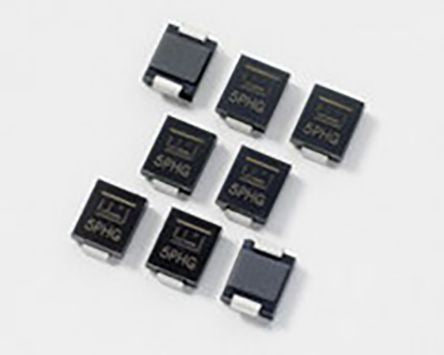

Littelfuse SMDJ15A, Uni-Directional TVS Diode, 3000W, 2-Pin DO-214AB [SMDJ15A]; 171-4380
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 24.4V |
| Minimum Breakdown Voltage | 16.7V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AB (SMC) |
| Maximum Reverse Stand-off Voltage | 15V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 3000W |
| Maximum Peak Pulse Current | 123A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 6.22mm |
| Maximum Reverse Leakage Current | 2µA |
| Length | 7.11mm |
| ESD Voltage | 30kV |
| Dimensions | 7.11 x 6.22 x 2.41mm |
| Surge Current Rating | 300A |
| Height | 2.41mm |
| Test Current | 1mA |
