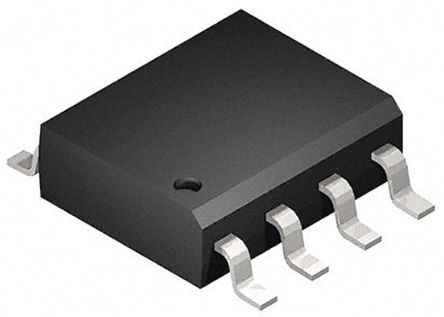

Littelfuse SP2502LBTG, Quint Uni-Directional TVS Diode Array, 2100W, 8-Pin SOIC [SP2502LBTG]; 171-3879
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Array |
| Maximum Clamping Voltage | 30V |
| Minimum Breakdown Voltage | 3.3V |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Maximum Reverse Stand-off Voltage | 3.3V |
| Pin Count | 8 |
| Peak Pulse Power Dissipation | 2100W |
| Maximum Peak Pulse Current | 75A |
| Number of Elements per Chip | 5 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 5 x 4 x 1.65mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 2µA |
| Width | 4mm |
| Height | 1.65mm |
| Length | 5mm |
| Capacitance | 8pF |
