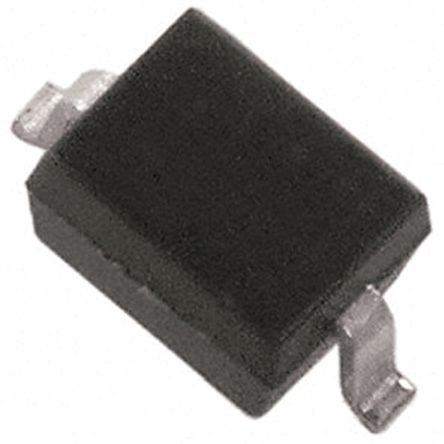

Littelfuse SP4020-01FTG, Triple Uni-Directional TVS Diode Array, 750W, 2-Pin SOD-323 [SP4020-01FTG]; 171-3888
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Array |
| Maximum Clamping Voltage | 21.8V |
| Minimum Breakdown Voltage | 3.5V |
| Mounting Type | Surface Mount |
| Package Type | SOD-323 |
| Maximum Reverse Stand-off Voltage | 3.3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 750W |
| Maximum Peak Pulse Current | 30A |
| ESD Protection | Yes |
| Number of Elements per Chip | 3 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 1.9mm |
| Capacitance | 2.5pF |
| Dimensions | 1.9 x 1.45 x 1.04mm |
| Maximum Reverse Leakage Current | 500nA |
| Test Current | 2µA |
| Width | 1.45mm |
| Height | 1.04mm |
