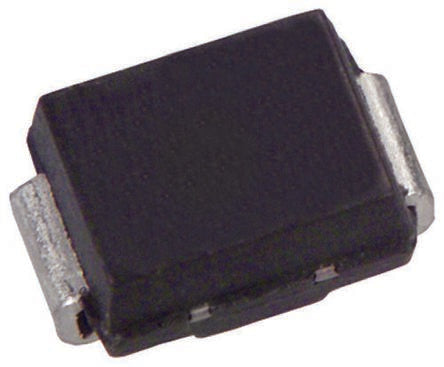

Littelfuse SZP6SMB39AT3G, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA [SZP6SMB39AT3G]; 786-4690
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 53.9V |
| Minimum Breakdown Voltage | 37.1V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Maximum Reverse Stand-off Voltage | 33.3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 11.2A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 5µA |
| Dimensions | 4.6 x 3.95 x 2.28mm |
| Test Current | 1mA |
| Width | 3.95mm |
| Length | 4.6mm |
| Height | 2.28mm |
