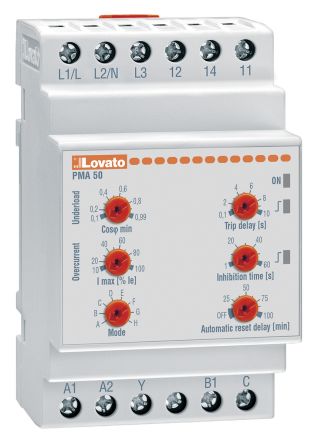

Lovato Current Monitoring Relay With SPDT Contacts, 1, 3 Phase, 440 → 480 V ac [PMA50A480]; 916-0192
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 440 → 480 V ac |
| Contact Configuration | SPDT |
| Electrical Phase | 1, 3 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Minimum Current Sensed | 0.1A |
| Maximum Current Sensed | 16A |
| Time Delay | 0.1 → 10 s |
| Mounting Type | DIN Rail |
| Height | 104.7mm |
| Series | PMA50 |
| Length | 53.5mm |
| Maximum Operating Temperature | +60°C |
| Width | 64.9mm |
| Operating Temperature Range | -20 → +60 °C |
| Terminal Type | Screw |
| Standards Met | CSA C22.2 No. 14, CULus, File E93601, IEC/EN 60255-5, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, UL Listed |
| Number of Poles | 1 |
| Dimensions | 53.5 x 64.9 x 104.7 mm |
| Minimum Operating Temperature | -20°C |
| Current Range | 0.1 → 16 A |
