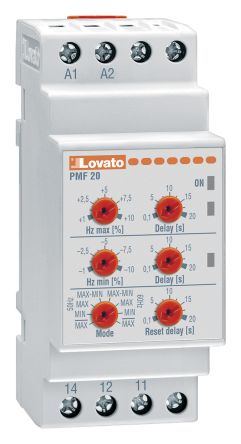

Lovato Frequency Monitoring Relay With SPDT Contacts, 1, 3 Phase, 220 → 240 V ac [PMF20A240]; 916-0218
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Frequency |
| Supply Voltage | 220 → 240 V ac |
| Contact Configuration | SPDT |
| Electrical Phase | 1, 3 |
| Time Delay | 0.1 → 20 s |
| Frequency Sensing Range | 40 → 70 Hz |
| Operating Temperature Range | -20 → +60 °C |
| Minimum Frequency Sensed | 40Hz |
| Minimum Operating Temperature | -20°C |
| Number of Poles | 1 |
| Dimensions | 35.8 x 64.9 x 104.7 mm |
| Standards Met | CSA C22.2 No. 14, CULus, File E93601, IEC/EN 60255-5, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, UL Listed |
| Series | PMF20 |
| Length | 35.8mm |
| Width | 64.9mm |
| Terminal Type | Screw |
| Maximum Frequency Sensed | 70Hz |
| Maximum Operating Temperature | +60°C |
| Mounting Type | DIN Rail |
| Height | 104.7mm |
