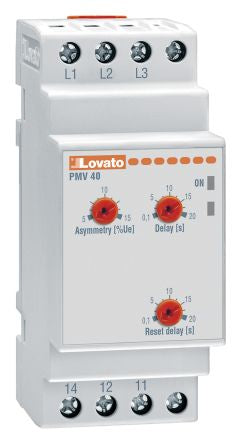

Lovato Voltage Monitoring Relay With SPDT Contacts, 3 Phase, 380 → 575 V ac [PMV40A575]; 916-0108
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 380 → 575 V ac |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Self Powered |
| Electrical Phase | 3 |
| Voltage Sensing Range | Maximum of 400 V ac |
| Time Delay | 0.1 → 20 s |
| Width | 64.9mm |
| Series | PMV40 |
| Dimensions | 35.8 x 64.9 x 104.7 mm |
| Number of Poles | 1 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Standards Met | CE, CSA C22.2 No. 14, CULus, File E93601, IEC/EN 60255-5, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, UL Listed |
| Length | 35.8mm |
| Height | 104.7mm |
| Maximum Voltage Sensed | 400V ac |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Operating Temperature Range | -20 → +60 °C |
