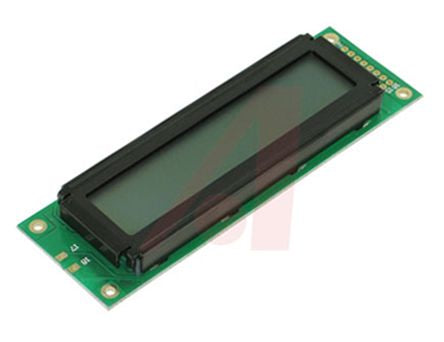

Lumex LCR-U02002DSF-WH Alphanumeric LCD Display, White on Grey, 2 Rows by 20 Characters, Transflective [LCR-U02002DSF-WH]; 888-5758
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Alphanumeric |
| Character Matrix | 2 Rows by 20 Characters |
| Characters per Row | 20 |
| Character Rows | 2 |
| Character Height | 5.6mm |
| Character Width | 3.2mm |
| Viewing Area Height | 18.6mm |
| Viewing Area Width | 83mm |
| Viewing Area Dimensions | 83 x 18.6mm |
| Interface Type | Parallel |
| External Depth | 12.8mm |
| Backlight Type | LED |
| Illumination Colour | White |
| Background Colour | Grey |
| External Width | 116mm |
| External Dimensions | 116 x 37 x 12.8mm |
| External Height | 37mm |
| Controller Type | LSI |
| Display Mode | Transflective |
| Display Matrix Technology | STN |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Power Dissipation | 99mW |
| Current Rating | 15mA |
| Voltage Rating | 7.2V |
| Operating Temperature Range | -40 → +85°C |
